Designing a bar is about more than choosing countertops and stools. The details make the difference and one of the most underrated upgrades is a bar foot rail. Whether you’re building a home bar or upgrading a commercial space, a foot rail adds comfort, style, and a professional finish.
In this guide, you’ll learn how to plan, measure, and install a bar foot rail step by step, along with expert design tips to get the best results.
What Is a Bar Foot Rail?

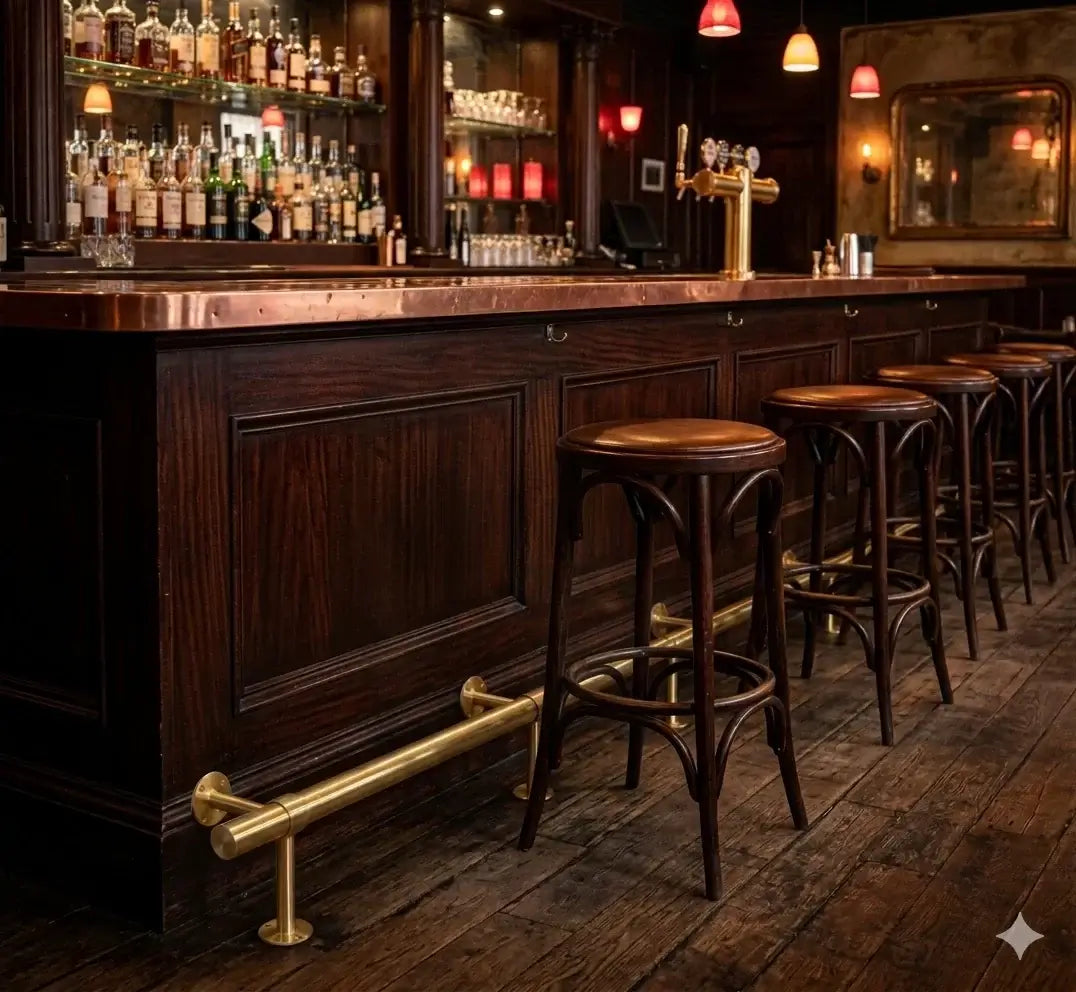

A bar foot rail is a horizontal bar installed near the base of a bar counter. It gives guests a place to rest their feet, improving posture and comfort while seated or standing.
Beyond function, it creates that classic “pub-style” look that instantly makes a bar feel complete.
Why You Should Install a Foot Rail
1. Better Comfort
Without a foot rail, sitting at a bar can feel awkward. A rail provides natural support and reduces strain on legs and lower back.
2. Professional Appearance
Foot rails are a signature feature of well-designed bars. Adding one elevates your space instantly.
3. Protects Your Bar
It prevents scuff marks, scratches, and wear on the lower part of your bar.
4. Encourages Socializing
Comfortable guests stay longer—it’s that simple.
Bar Foot Rail Components Explained
Before you begin, understand the key parts:
- Tubing (Rail): The main bar (usually ~2 inches diameter)
- Brackets: Support pieces that hold the rail in place
- End Caps: Decorative ends for a finished look
- Elbows: Used for corners
- Splice Sleeves: Connect multiple rail sections
Step 1: Measure Your Bar Layout
Accurate measurements are critical.
Tips:
- Measure each section of your bar (front, sides, corners)
- Use painter’s tape or string to visualize placement
- Always round up slightly—you can trim excess later
Step 2: Plan Your Rail Length
Bar rail tubing comes in standard sizes (2 ft, 4 ft, 6 ft, 8 ft).
Best Practices:
- Use longer sections for fewer joints
- Place joints near brackets for stability
- Keep layout symmetrical for aesthetics
Step 3: Determine Bracket Placement
Proper spacing prevents sagging.
General Rule:
- 2–6 inches from each end
- Every 3–4 feet along the rail
Even spacing = better support + cleaner look.
Step 4: Choose the Right Bracket Type
Different setups require different brackets:
- Bar-Mount: Attached directly to the bar face
- Floor-Mount: Ideal if drilling into the bar isn’t possible
- Combination: Attaches to both bar and floor
- Center Post: Flexible placement option
Step 5: Set Ideal Height & Distance
For best comfort:
- Height: 6–8 inches from the floor
- Distance from bar: ~6 inches
Adjust slightly depending on stool height and user preference.
Step 6: Pick Materials & Finishes
Your material choice defines the look:
Popular Options:
- Brass: Classic and elegant
- Stainless Steel: Modern and durable
- Black Iron: Industrial style
Tip:
Match your rail with bar hardware, lighting, or stools for a cohesive design.
Common Bar Layouts
Straight Bar
- Simplest installation
- Minimal components needed
L-Shaped Bar
- Requires corner elbows
U-Shaped Bar
- More complex
- Needs multiple corners and extra brackets
Tools You’ll Need
- Drill or screwdriver
- Measuring tape
- Level
- Metal saw
- File (for smoothing edges)
- Pencil/marker
- Adhesive
Step-by-Step Installation Guide
Step 1: Cut the Tubing
- Measure carefully
- Use proper saw for your material
- Smooth edges with a file
Step 2: Dry Fit Everything
- Assemble rails and brackets loosely
- Check alignment before drilling
Step 3: Connect Rail Sections
- Use splice sleeves
- Position joints near brackets
Step 4: Mark Bracket Positions
- Use a level
- Double-check spacing
Step 5: Install Brackets
- Drill pilot holes
- Secure with screws
- Keep slightly loose for adjustments
Step 6: Attach the Rail
- Place tubing into brackets
- Tighten screws firmly
Step 7: Install Corners (If Needed)
- Attach elbow fittings
- Ensure smooth alignment
Step 8: Add End Caps
- Apply adhesive
- Insert caps securely
Maintenance Tips
Keep your rail looking new:
- Clean regularly with non-abrasive products
- Polish metal finishes when needed
- Tighten brackets periodically
Design Tips for a Stunning Bar
Match Your Theme
Coordinate finishes with your bar’s overall style.
Use Contrast
A bold rail color can become a design highlight.
Think About Traffic
Choose durable materials for busy areas.
Prioritize Comfort
Always stick to ergonomic height and spacing.
Common Mistakes to Avoid
- Incorrect measurements
- Too few brackets
- Installing at wrong height
- Skipping dry fitting
- Weak mounting surfaces
Final Thoughts
A bar foot rail is a small feature with a big impact. It improves comfort, protects your bar, and adds a professional touch that transforms the entire space.
With proper planning and careful installation, you can achieve a high-end look that rivals commercial bars—right in your own home.
